Ss 304 A2
Package Size 25.00cm * 15.00cm * 10.00cm Package Gross Weight 25.000kg SS 304 A2-70 Threaded Rod Thread Bar Stainless St
Description
Basic Info.
| Model NO. | M2 - M45 |
| Certification | ISO, GS |
| Customized | Non-Customized |
| Service | OEM, ODM |
| Delivery Time | 5-25days |
| Length | Custom |
| Szie | M2 - M45 |
| Transport Package | Carton+Pallet |
| Specification | DIN975 |
| Trademark | Goshen |
| Origin | China |
| HS Code | 7318190000 |
| Production Capacity | 1000 Tons Per Month |
Packaging & Delivery
Package Size 25.00cm * 15.00cm * 10.00cm Package Gross Weight 25.000kgProduct Description

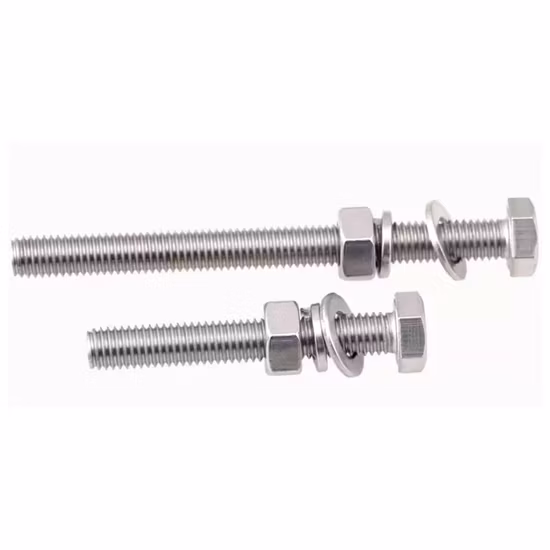

SS 304 A2-70 Threaded Rod Thread Bar Stainless Steel A4-80 Full Threaded Rod Stud Rod DIN975 or DIN976
| Material | Stainless Steel ,Galvanized , Pure, Aluminum, Aluminum alloy,Carbon Steel Etc |
| Standard | DIN, ANSI/ASME. BSW, ISO, etc |
| Diameter: | M2 - M45 |
| Surface: | Zinc /blue/yellow /Dacromet/Plated, plain, hot DIP galvanizing, |
| Grade: | A2-70,A4-80 |
| Tolerance | +/- 0.01--0.05mm / can also be customized. |
| Size | Customized |
| Thickness: | Customized |
| Package | Inner pearl button,outside carton box, or customized |
Any specific size can be provided according to customers' requirements
| DIN975 | |||
| Screw Thread d | Pitch P | ||
| coarse thread | Fine therad | Fine thread | |
| M5 | 0.8 | / | / |
| M6 | 1 | / | / |
| M8 | 1.25 | / | 1 |
| M10 | 1.5 | 1.25 | 1.25 |
| M12 | 1.75 | 1.5 | / |
| M14 | 2 | 1.5 | / |
| M16 | 2 | 1.5 | / |
| M18 | 2.5 | 1.5 | / |
| M20 | 2.5 | 1.5 | / |
| M22 | 2.5 | 1.5 | / |
| M24 | 3 | 2 | / |
| M27 | 3 | 2 | / |
| M30 | 3.5 | 2 | / |
| M33 | 3.5 | 2 | / |
| M36 | 4 | 3 | / |
| M39 | 4 | 3 | / |
| M42 | 4.5 | 3 | / |
| M45 | 4.5 | 3 | / |
| M48 | 5 | 3 | / |
| M52 | 5 | 3 | / |
